Welcome to the world of welding titanium to stainless steel. As a welder, you understand the intricacies of joining metals together to create a strong and durable bond. Welding titanium to stainless steel requires a unique set of skills and techniques that not every welder is familiar with.
In this article, we will guide you through the process of welding titanium to stainless steel. We will explore the challenges involved in this complex process and provide you with the best practices and techniques to elevate your welding skills and broaden your expertise.

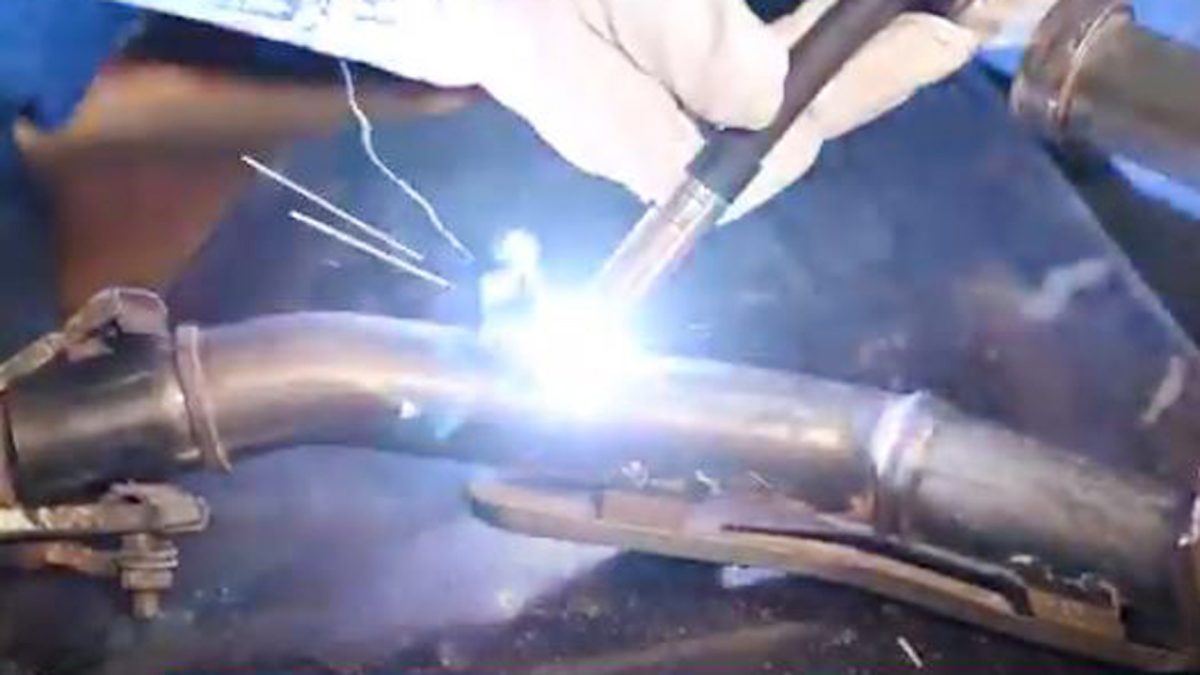

Image by AutospeciLvAkumulatori on YT
Whether you are a seasoned welder or just starting out, learning how to weld titanium to stainless steel is an invaluable skill that can open up new opportunities for you in the welding industry. First, let’s dive into the fundamentals of the welding process and gain a better understanding of this unique welding process.
What is Titanium ?
Titanium is a very strong, light and very corrosion resistant metal that is used in many applications including aerospace, medical, automotive and marine. In the welding arena titanium is used in gas shielded arc welding systems, plasma arc welding equipment and is even used in electric arc welding systems. When welded to stainless steel titanium’s properties make it an excellent metal to weld with, but the welds may not last very long.
Understanding the Process of Welding
Welding titanium to stainless steel is a challenging process that requires careful consideration. To achieve a strong and durable bond between the two dissimilar metals, several factors must be taken into account.
Challenges
One of the primary challenges in welding titanium and stainless steel is the difference in their chemical and physical properties. Titanium has a higher melting point, is more reactive with oxygen, and has a lower thermal conductivity than stainless steel. These differences can lead to problems like porosity, cracking, and distortion if not addressed properly.
Considerations
Before attempting a weld between titanium and stainless steel, it’s important to consider several factors:
- The type of joint to be used
- The appropriate filler metal
- Gas shielding
- Heat input
Choosing the right joint design and filler material can help mitigate the differences in thermal properties between the two metals. Additionally, using the appropriate gas shielding and controlling the heat input can prevent oxidation and distortion of the materials.
Different Approaches
There are several different approaches to welding titanium to stainless steel, including TIG welding, laser welding, and electron beam welding. Each method has its own advantages and disadvantages depending on the specific application.
| Welding Method | Advantages | Disadvantages |
|---|---|---|
| TIG Welding | High-quality welds, precise control, and low distortion | Low welding speed, requires high skill level |
| Laser Welding | Fast welding speed, minimal heat input, and narrow weld zone | Requires sophisticated equipment, difficult to weld dissimilar materials |
| Electron Beam Welding | Highly precise welds, deep penetration, and minimal distortion | Requires vacuum environment and sophisticated equipment |
By understanding the fundamentals of welding titanium to stainless steel, including the challenges, considerations, and different approaches, you can choose the best method for your specific application.
Techniques for Welding Titanium to Stainless Steel
Welding stainless steel to titanium can be a challenging process due to their vastly different physical and chemical properties. However, by using the appropriate techniques, it is possible to achieve a strong and durable weld. Here are some of the most commonly used techniques for welding titanium to stainless steel:
TIG Welding
Tungsten Inert Gas (TIG) welding is a popular welding method for joining titanium and stainless steel due to its ability to produce high-quality, precise welds. TIG welding involves using a tungsten electrode to create an arc between the two metals, while filler material is added to the weld pool to create a strong bond. Gas shielding is used to protect the weld from atmospheric contamination, resulting in a clean, uniform appearance.
Laser Welding
Laser welding is a non-contact welding method that uses a high-powered laser beam to melt and join the two metals. This technique is ideal for welding titanium to stainless steel as it produces a narrow, deep weld that minimizes heat-affected zones and prevents distortion. Laser welding can also be used to weld dissimilar metals that cannot be welded using other techniques.
Electron Beam Welding
Electron Beam Welding (EBW) is a high-energy welding method that uses a concentrated beam of electrons to create a fusion between the two metals. This technique is ideal for welding titanium to stainless steel due to the high energy density of the beam, which results in a narrow, precise weld that minimizes heat-affected zones. EBW is particularly useful for welding materials with high melting points and is often used in the aerospace and medical industries.
Friction Stir Welding
Friction Stir Welding (FSW) is a solid-state welding method that involves using a rotating tool to generate heat and friction, which softens the metals and allows them to fuse together. This technique is particularly useful for welding titanium to stainless steel as it produces a strong, defect-free weld with minimal distortion. FSW also has the added benefit of being a low-heat welding process, which reduces the risk of warping and cracking.
Explosion Welding
Explosion welding is a unique welding process that involves using an explosive charge to forcibly join the two metals together. This technique is reserved for creating strong, high-quality bonds between materials that cannot be welded using other techniques. While not commonly used for welding titanium to stainless steel, explosion welding can be a useful option in certain applications.
By understanding and implementing these techniques, you can achieve high-quality welds when welding titanium to stainless steel. It’s important to select the appropriate technique based on your application, considering factors such as joint design, metallurgical properties, and required strength.
Best Practices for Welding Titanium to Stainless Steel
Welding titanium to stainless steel requires attention to detail and strict adherence to best practices to ensure a successful and strong weld. Here are some techniques to follow when welding titanium to stainless steel:
Joint preparation
One of the most critical factors in welding titanium to stainless steel is joint preparation. The joint must be clean, free of any contaminants or oxides, and properly aligned. It is recommended to use a stainless steel wire brush to clean the joint and a 100 percent argon gas shield to prevent contamination.
Filler material selection
Choosing the correct filler material is essential when welding titanium to stainless steel. Filler materials with a lower melting point than the base metals can result in poor-quality welds. It’s recommended to use titanium filler material for joining titanium to stainless steel. However, ensure that the filler material is compatible with both base metals and meets the necessary welding requirements.
Gas shielding
Gases used for shielding during welding must be carefully selected to avoid contaminating the joint. High-purity argon is recommended for welding titanium to stainless steel. The argon should have a purity of at least 99.995%, and the flow rate should be monitored to prevent contamination.
Controlling heat input
Controlling heat input is crucial to avoid warping, cracking, and other defects in the weld. It’s necessary to use a low-amperage setting to avoid overheating the joint during welding. Also, prevent using excessive heat as it can cause the metal to warp and distort, resulting in a poor-quality weld, which can compromise the structural integrity of the joint.
Expand Your Capabilities
As you continue to hone your skills in welding titanium to stainless steel, you’ll find that your capabilities as a welder will expand. You’ll be able to take on more complex projects, work with a wider range of materials, and deliver exceptional results that set you apart from other welders.
So keep practicing, stay up-to-date with the latest techniques and best practices, and never stop learning. With dedication and hard work, you can become a master of welding titanium to stainless steel and achieve success in your welding career.
Conclusion
Welding titanium to stainless steel requires careful planning and strict adherence to best practices. Joint preparation, filler material selection, gas shielding, and controlling heat input are critical elements of a successful weld. By following these techniques, you can create high-quality welds that offer exceptional strength and durability.
FAQs
What are the challenges involved in welding titanium to stainless steel?
Welding titanium to stainless steel can be challenging due to their dissimilar properties and the potential for intermetallic reactions. It requires careful consideration of factors such as material preparation, filler material selection, and heat control.
What are the different techniques used for welding titanium to stainless steel?
There are several techniques commonly used for welding titanium to stainless steel, including TIG welding, laser welding, and electron beam welding. Each technique has its own advantages and disadvantages, and the choice depends on the specific requirements of the project.
What are the best practices for welding titanium to stainless steel?
Following best practices is essential for achieving high-quality welds when working with titanium and stainless steel. Some key considerations include proper joint preparation, selecting the appropriate filler material, ensuring effective gas shielding, and controlling heat input to minimize the risk of distortion or cracking.
Can I weld stainless steel to titanium without any special precautions?
Welding stainless steel to titanium requires special precautions due to the potential for intermetallic reactions and the formation of brittle compounds. It is crucial to follow recommended procedures and use appropriate filler materials to ensure a strong and reliable weld joint.
What are the benefits of mastering the art of welding titanium to stainless steel?
Mastering the art of welding titanium to stainless steel expands your capabilities as a welder and allows you to take on a wider range of projects. It enhances your expertise in joining dissimilar metals and opens up opportunities in industries such as aerospace, automotive, and medical.
Why Does Welding titanium to stainless steel Matter?
Welding titanium to stainless steel is not the most exciting thing in the world, but it is a great way to strengthen the joint between titanium and stainless steel. Both metals are corrosion resistant and durable, but welding titanium to stainless steel is far more durable. This is because titanium has a much higher melting point than stainless steel. Because of how strong titanium is, welding titanium to stainless steel is a great way to strengthen the joint.
